Name: Thru hole torque sensor Tailormade through hole torque transducer
Brand: Forsentek
Price: 1 USD

Brand Name : Forsentek

Model Number : FTM

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 2200pcs/month

Delivery Time : 3~20 working days

Packaging Details : 1pc/box

Certification : CE

Usage : Torque measurement

Type : Hollow flange torque load cell

Output : Analog Sensor

Torque range : 20NM 30NM 50NM

Contact Now

Thru hole torque sensor Tailor-made through hole torque transducer

Thru hole torque sensor Tailor-made through hole torque transducer

Specifications

Rated capacity	20NM 30NM 50NM (Customizable)
Rated output	1.0 mV/V
Excitation	3-15V
Zero balance	±2% R.O.
Non-linearity	±0.2% R.O.
Hysteresis	±0.2% R.O.
Non-repeatability	±0.2% R.O.
Creep(10min)	±0.1% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temp.	-10...+40^oC
Operating temp.	-20...+60^oC
Temp. shift zero	±0.02% R.O./^oC
Temp. shift span	±0.01% R.O./^oC
Input resistance	700±50 ohms
Output resistance	700±10 ohms
Insulation resistance	>5000M ohms
Ingress protection	IP60
Material of element	Aluminum alloy
Cable	Ø5*3000mm 4-core shielded cable (Mating connector included)
Wiring code	Clockwise@ Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal-

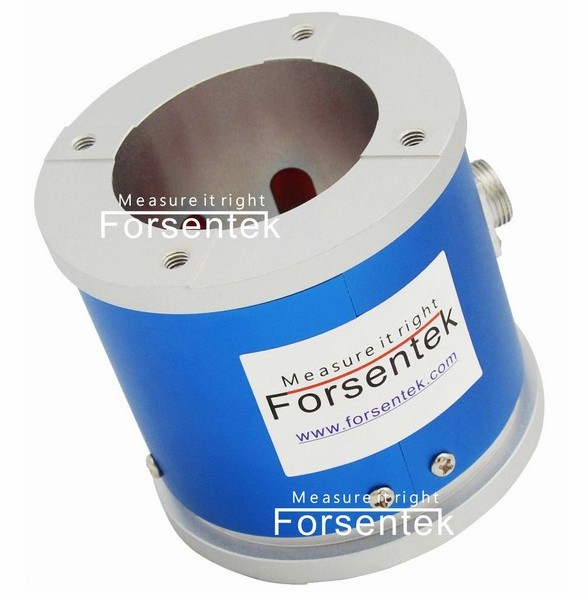

Flange to flange through hole reaction torque sensor FTM

Thru hole torque sensor Tailor-made through hole torque transducer

Dimensions

Thru hole torque sensor Tailor-made through hole torque transducer
